Stone Cavity Weep™

Self-Spaced Weeps for Natural Stone

SCV 5012

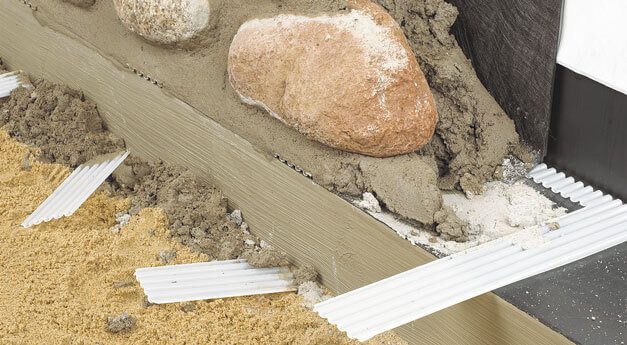

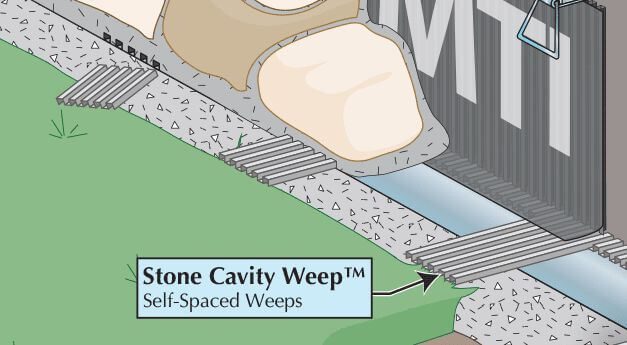

Stone Cavity Weep™ Installation

  • Place Stone Cavity WeepTM on flashing with continuous belt centered in the cavity and legs extending out from face of wall about 1” to 1.5”
  • Place bed joint of mortar on Stone Cavity WeepTM and lay masonry units
  • Tool joints and lightly score legs at face of wall; crack off by pushing downward while mortar is still plastic
  • Finish tool joint and brush

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Stone Cavity Weep™ Specifications

The 2.25″ (57 mm) wide weep legs at 9.5″ (241 mm) on center; continuous belt 1″ (25.4 mm) wide; and total width of 1′-0″ (152 mm).

Product Number
SCV 5012
Linear Feet per Roll
25
Rolls Per Bundle
2
Linear Feet per Bundle
50
Bundles per Box
6
Linear Feet per Box
300
Boxes per Pallet
16
Linear Feet per Pallet
4800
Pallet Size
48″x40″x64″
