Floor Edging™

For Dry Basements

FE 8555

Floor Edging™



Product made with a minimum 94% post industrial recycled plastic Made with a minimum 94% Post-Industrial Recycled Plastic

Floor Edging™ Installation

  • Layout Floor Edging™ overlapping ends approximately 2”
  • Fabricate inside and outside corners with common utility knife
  • Select proper floor elevation with story pole or snap chalk line – Top edge of Floor Edging™ must be a minimum of 2” higher than top edge of concrete
  • Cover floor edging™ and drain field with poly before pouring floor

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Floor Edging™ Specifications

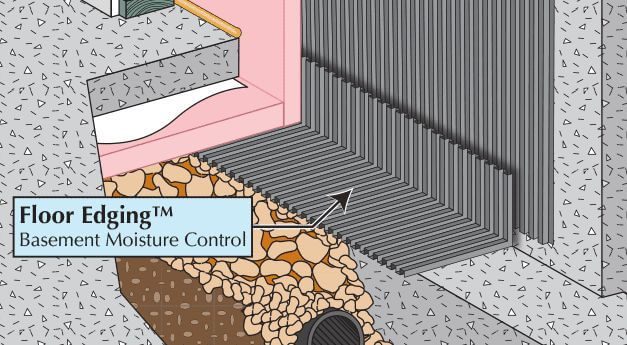

FE 8555 is a 0.024" (0.6 mm) thick high-impact polystyrene strip formed with 3/16" (4.8 mm) deep corrugations, bent into L-shape, 9" (229 mm) wide by 5" (127 mm) high, to fit on top of footing and below the edge of a slab on grade. The system forms a control joint between slab and wall and serves as a thermal break between the slab and footing and/or foundation.

Product Number FE 8555
Piece Length (Feet) 4
Pieces per Bundle 10
Linear Feet per Bundle 40
Bundles per Box 6
Linear Feet per Box 240
Boxes per Pallet 10
Linear Feet per Pallet 2400
Pallet Size 48"x40"x55"
