Vent Mat™

Weeps for Block Basement Walls

VM 9025

Product made with a minimum 94% post industrial recycled plastic Made with a minimum 94% Post-Industrial Recycled Plastic

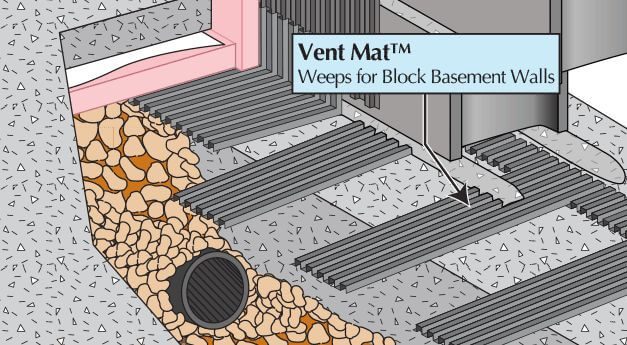

Vent Mat™ Installation



  • Clean footing surface
  • Roll out Vent Mat™ on footings with continuous belt centered in core and legs to interior of building
  • Place bed joint of mortar on Vent Mat and lay masonry units

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Vent Mat™ Specifications

The 2.25″ (57 mm) wide weep legs at 4.5″ (114 mm) on center; continuous belt 2.5″ (64 mm) wide; and total width of 11.5″ (292 mm). Color is black.

Product Number
VM 9025
Roll Length (Feet)
25
Rolls Per Bundle
2
Linear Feet per Bundle
50
Bundles per Box
6
Linear Feet per Box
300
Boxes per Pallet
8
Linear Feet per Pallet
2400
Pallet Size
48″x40″x35″
