L & R Weep Screed™

Designed for Moisture Control

LR 3501

Product made with recycled steel Made with Recycled Steel

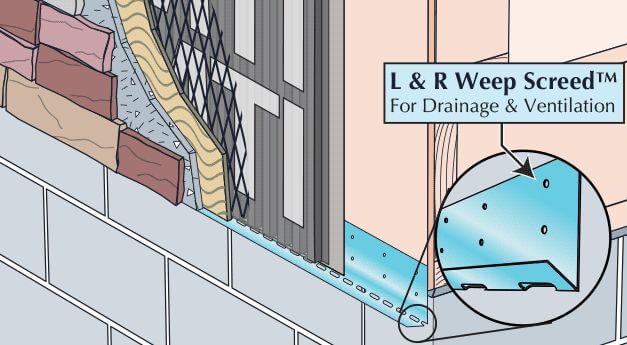

L & R Weep Screed™ Installation

  • Install 2” below foundation plate line and a minimum of 4” above the earth or a minimum of 2″ above paved areas
  • Place WRB, drainage plane inside L & R Weep ScreedTM
  • Apply the thin veneer

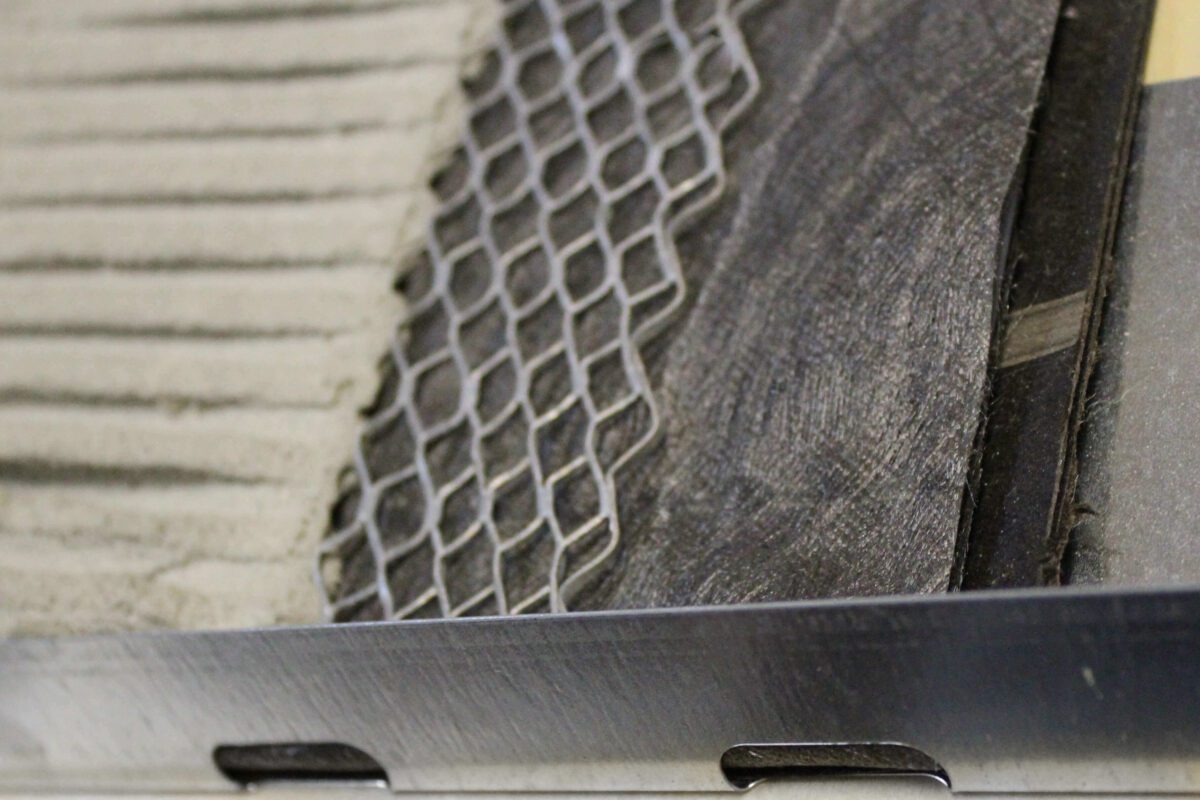

  • Make sure WRB, Sure CavityTM (or Gravity CavityTM), metal lath and scratch coat go inside the L & R Weep ScreedTM

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

L & R Weep Screed™ Specifications

26 gauge galvanized steel bent into 70° V shape. Vertical attachment flange – 3.5″ (89 mm), Short leg – 1 1/32″ (26.19mm), ground – 0.5″ (13 mm), bonding slots 1″ (25 mm) punched 1.75″ (44 mm) apart, 8 ft long.

Product Number
LR 3501
Piece Length (Feet)
8
Units per Tube
20
Linear Feet per Tube
160
