Moisture Diverter™

Protection Above Doors & Windows

DS 2858

Product made with recycled steel Made with Recycled Steel


Moisture Diverter™ Installation

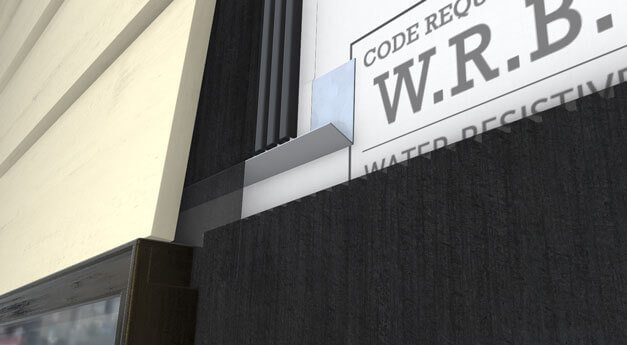

  • Position Moisture Diverter™ above wall openings (window, door, etc.) immediately above, but not in contact with, mounting flanges or flashing systems
  • Make Moisture Diverter™ watertight against moisture resistant coatings on masonry or poured concrete walls
  • Install flashing and overlap WRB shingle-fashion on framed wall

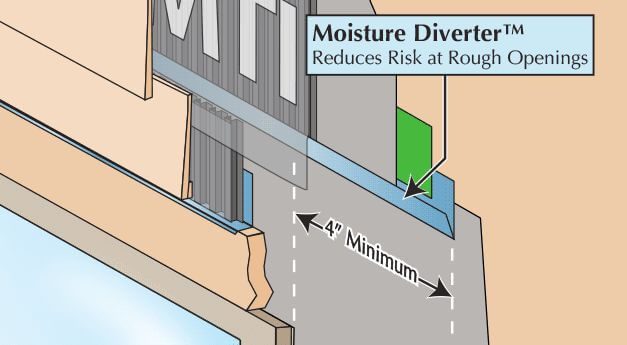

  • Install Moisture Diverter™ with 1/4 inch per foot slope-to-drain; Moisture Diverter™ must extend a minimum of 4 inches past window mounting flange or window trim on both sides of window

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Moisture Diverter™ Specifications

24 gauge galvanized steel 2.5″ wide and 4′ long; bent into a V shape with one leg 0.625″ long and one leg 1.875″ long and an angle of 65°.

Product Number
DS 2858
Piece Length (Feet)
4
Units per Tube
25
Linear Feet per Tube
100
