Vented MTI Edge Metal™

Designed for Moisture Control

VMEM 3168

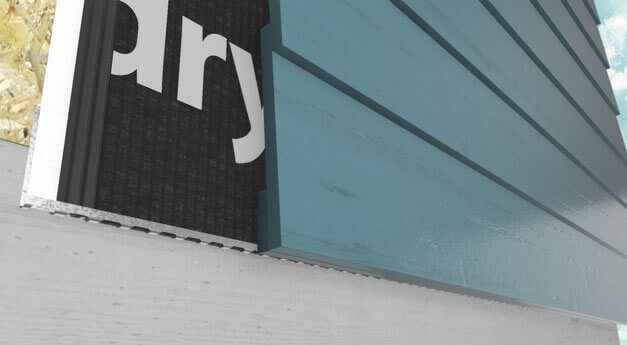

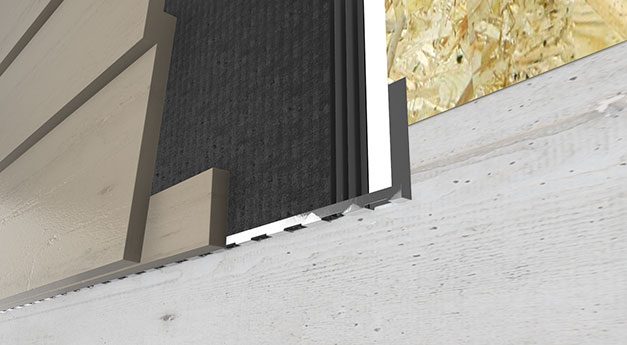

Vented MTI Edge Metal™ Installation

  • Install below foundation plate line a minimum of 4 inches above the earth
  • Run down onto foundation a minimum of 2 inches
  • Make sure WRB and Sure Cavity® or Gravity Cavity™ drainage plane go inside Vented MTI Edge Metal™
  • Vented MTI Edge Metal™ can also be used as part of a roof drainage system beneath shingles.  See HyperSpecs > Roofs for more information on this installation detail.

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Vented MTI Edge Metal Specifications

VMEM 3168 is 26 gauge galvanized steel bent into J channel with a 85° angle. Vertical attachment flange – 3.656″ (89 mm), ground – 0.5″ (13 mm), bonding slots 1″ (25mm) punched 1.75″ (44 mm) apart, 8 ft long.

Product Number
VMEM 3168
Piece Length (Feet)
8
Units per Tube
13
Linear Feet per Tube
104
