Sure Cavity Stucco Lath®

A Labor-Saving Fire-Rated Rainscreen Stucco Lath System

SCSL 3230
Product is fire rated Fire Rated Product


Sure Cavity Stucco Lath® Installation

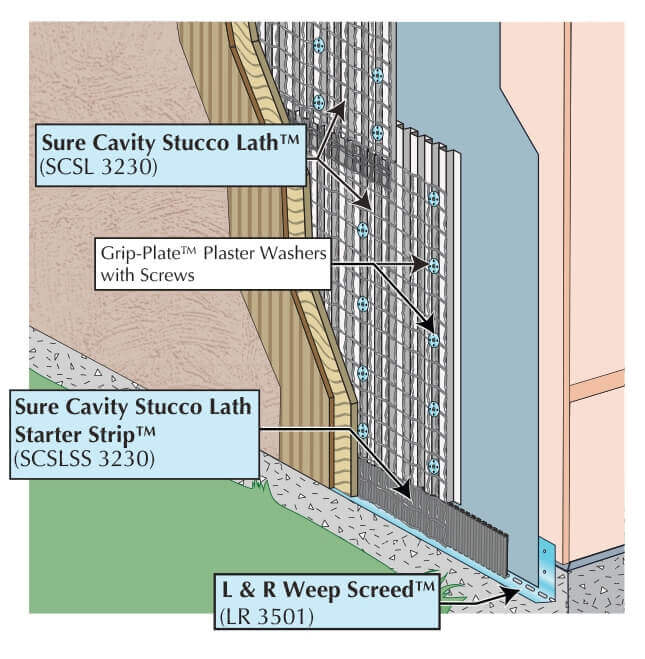

  • Sure Cavity Stucco Lath® rainscreen outboard of water resistive barrier. Stucco lath faces installer.

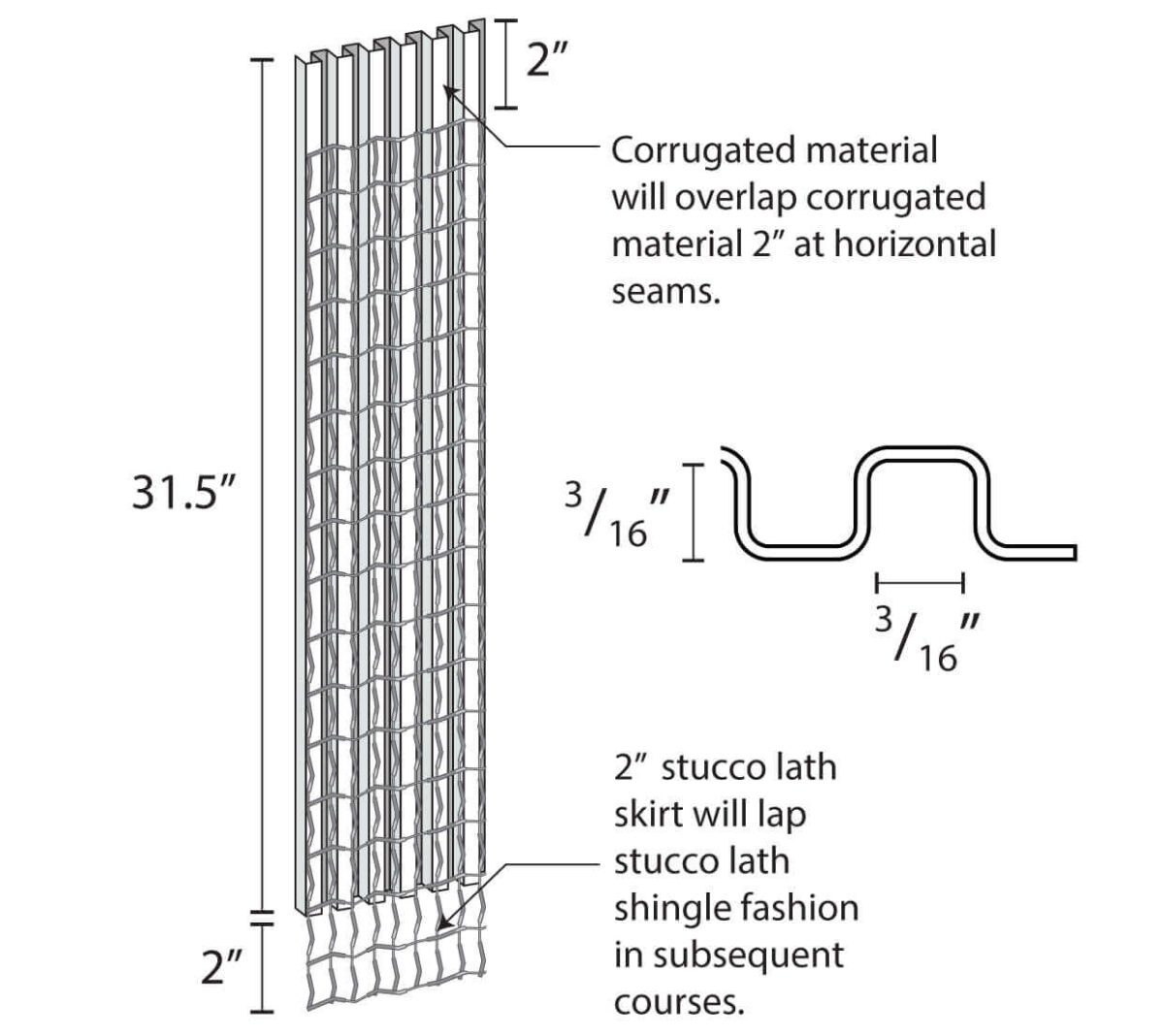

  • 2″ stucco lath skirt will lap shingle fashion in subsequent courses.
  • Corrugated material to overlap 2″ at horizontal seams. Wrap Sure Cavity Stucco Lath® around corners and extend to the nearest structural member.
  • Fasten with a code compliant fastener to a code compliant fastening pattern using Grip-Plate™ plaster washers and screws.

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Product Number
SCSL 3230
Square Feet per Roll
78
Roll Length (Feet)
30
Roll Width (Inches)
31.5
Channel Depth
3/16″/5mm
Rolls per Box
n/a
Boxes per Pallet
n/a
Rolls per Pallet
32
Square Feet per Pallet
2496
Pallet Size
50″x50″x75″
