Core Cavity Weep™

Weeps for CMU Veneers

CCV 5020

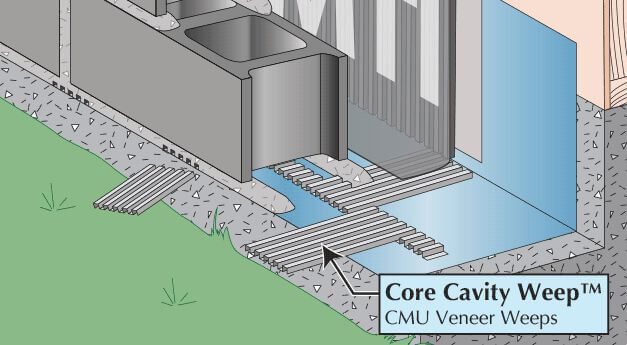

Core Cavity Weep™ Installation



  • Core Cavity Weep™ should be positioned on flashings with material centered on wall.  Allow intermittent legs to extend into the wall cavity and to the exterior
  • Place bed joint of mortar on Core Cavity Weep™ and lay masonry units following normal installation procedures
  • Tool joints and lightly score legs at face of wall; crack off by pushing downward while mortar is still plastic
  • Finish tool joint and brush

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Core Cavity Weep Specifications

The 2.5″ (64 mm) wide weep legs offset on each side of continuous belt, at 9.5″ (241 mm) on center; continuous belt 2″ (51 mm) wide; and total width 1′-0″ (305 mm).

Product
CCV 5020
Roll Length (Feet)
25
Rolls per Box
8
Linear Feet per Box
200
Boxes per Pallet
16
Linear Feet per Pallet
3200
Pallet Size
48″x40″x64″
