Cavity Weep™

Self-Spaced Brick Weeps

CV 5010

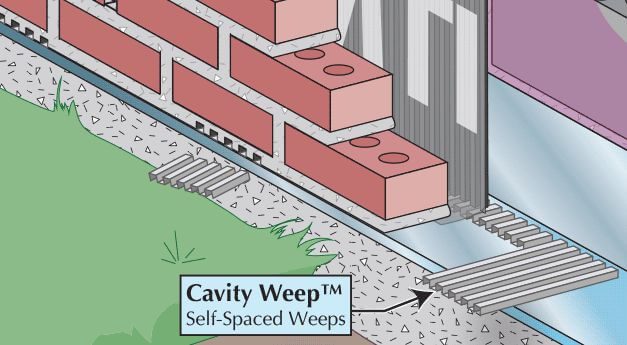

Cavity Weep™ Installation

  • Place Cavity WeepTM on flashing with continuous belt centered in the cavity and legs extending out from face of wall about 1” to 1.5”
  • Place bed joint of mortar on Cavity WeepTM and lay masonry units
  • Tool joints and lightly score legs at face of wall; crack off by pushing downward while mortar is still plastic
  • Finish tool joint and brush

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Cavity Weep Specifications

MTI Cavity Weep™ (CV 5010); 2 1/4″ (57 mm) wide weep legs at 9 1/2″ (241 mm) on center; continuous belt 1″ (25.4 mm) wide; and total width of 6″ (152mm).

Product Number
CV 5010
Roll Length (Feet)
25
Rolls Per Bundle
4
Linear Feet per Bundle
100
Bundles per Box
6
Linear Feet per Box
600
Boxes per Pallet
16
Linear Feet per Pallet
9600
Pallet Size
48″x40″x64″
