Concealed Steel Lintel / Shelf Angle Weep™

Used with Lip Brick Set in a Bed Joint of Mortar Applications

CLW 9040

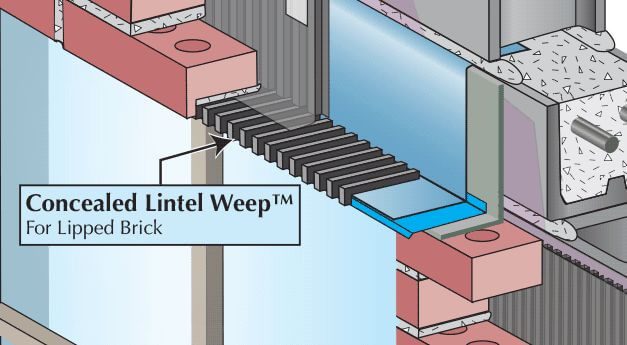

Concealed Steel Lintel / Shelf Angle Weep™ Installation

  • Place Steel Lintel/Shelf Angle Weep™ on flashing with the short custom-cut edge protruding downward off the exterior edge of the steel lintel/shelf angle and appropriate drip plate edge
  • The back edge of steel lintel/shelf angle custom weep system should be approximately ¼” from the vertical face of the steel lintel/shelf angle and vertical surface of flashing
  • Spread bed joint of mortar and install the lip brick units on the first course

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

Concealed Steel Lintel/Shelf Angle Weep™ Specifications

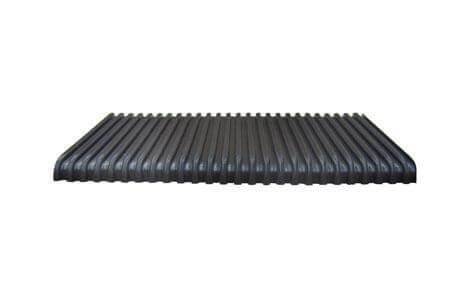

A 0.024″ (0.6 mm) thick high-impact polystyrene strip formed with .135″ (3.429 mm) deep corrugations, bent into L-shape, 9″ (229 mm), or less, wide by 5″ (127 mm), or less, high. This system forms the bottom of the bed joint of mortar and the front nose of the bed joint of mortar to create a weep system when a lip brick is used in the first course to conceal a steel lintel or shelf angle.

Product Number
CLW 9040
Piece Length (Feet)
4
Pieces per Bundle
10
Linear Feet per Bundle
40
Bundles per Box
6
Linear Feet/Units per Box
240
Boxes per Pallet
10
units per Pallet
2400/600
Pallet Size
48″x40″x55″
