Retrofit Brick Tie™

Interior-Installed Brick Tie

RBT 7381
Product made with recycled steel Made with Recycled Steel

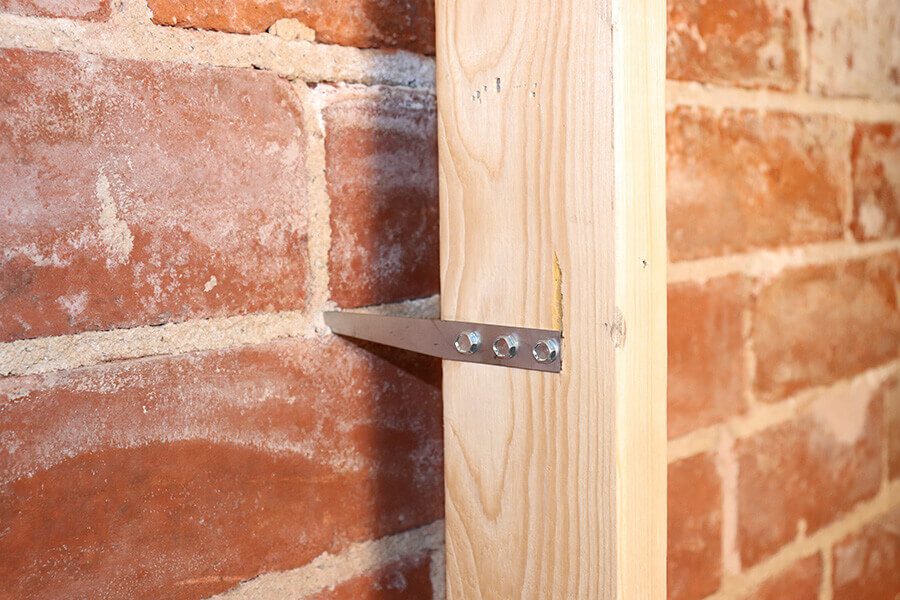

Retrofit Brick Tie™ Installation

  • From the interior, drill a 3″ deep, 3/8″ diameter hole in mortar joint next to studs. Clean dust and debris from hole.
  • Fill mortar joint with anchoring epoxy.
  • Insert Retrofit Brick Tie™ in epoxy and fasten to stud.
  • Install  Retrofit brick tie™ every 16″ vertically on studs.
  • Used in conjunction with MTI’s Retrofit Weep™ system.

Ordering & Shipping

Contact MTI at 1-800-879-3348 for specific cost to your destination.

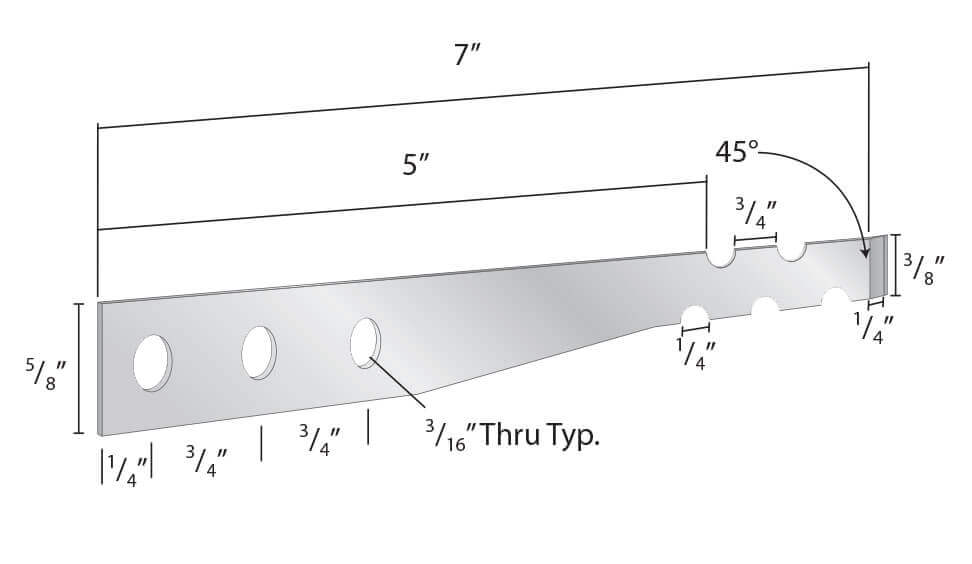

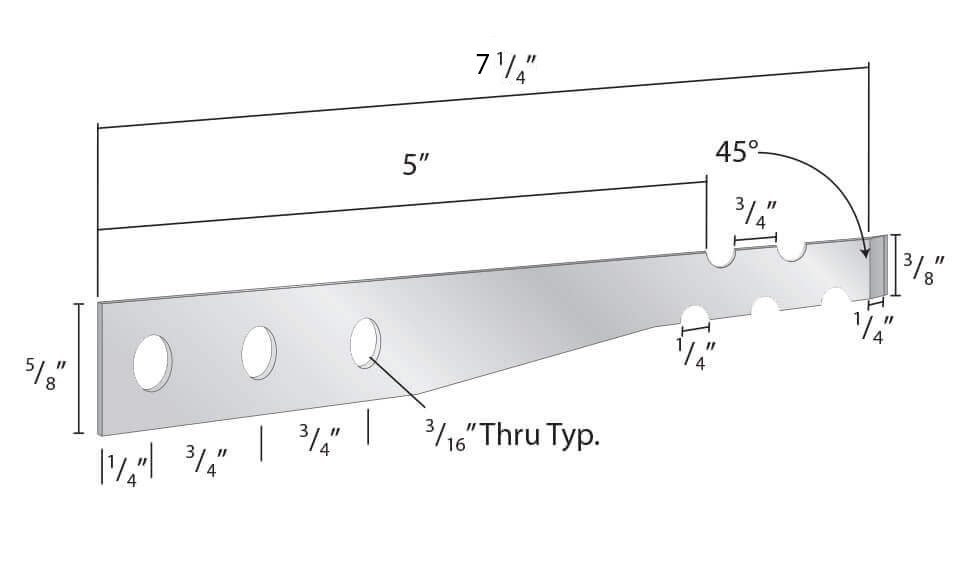

Material Description: .10″ Stainless Steel 304
